Dry-Batch Concrete Plant Dust Collectors

request quote
Product description

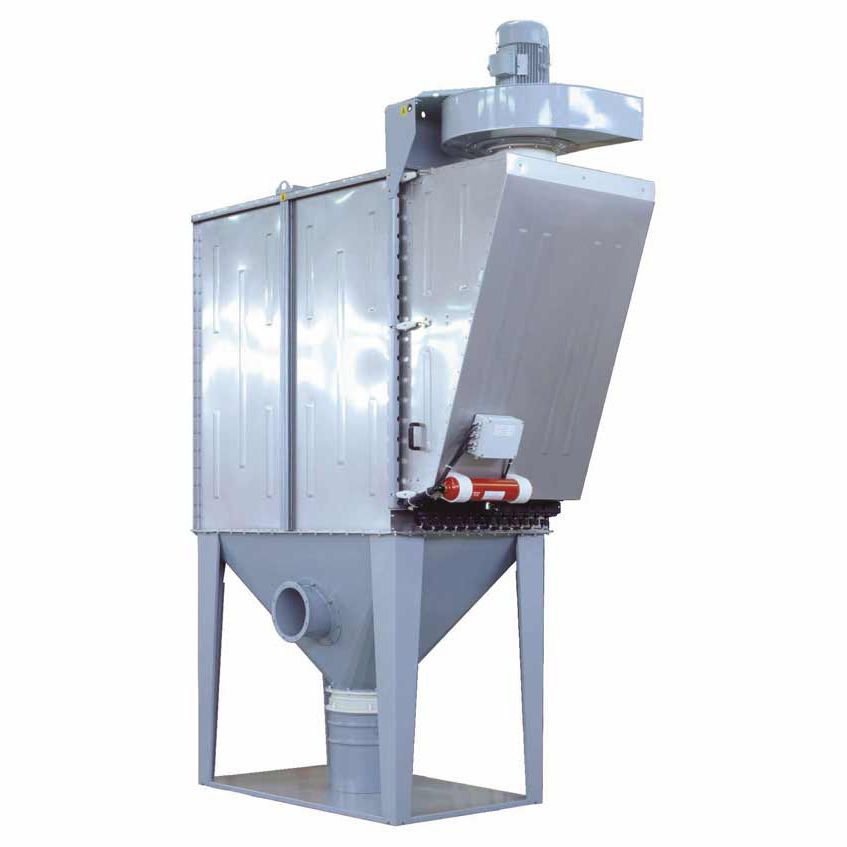

The DRYBATCH® R01 Dust Collector has been specially designed for dust collection from the truck mixer inlet zone in dry batch plants during filling of the truck mixer.

Features
 •  After market availibility of filter elements
 •  Easy handling of filter elements
 • Compressed air consumption: 210 l/min
 • Easy replacement of the filter elements through the access door
 • Air jet cleaning system inside maintenance access door
 • The installation do not require special foundations
 • The access door, supported by a robust hinge, allows free and easy access to the filter element, reducing the maintenance time.
 • Reduced overall dimensions due to the special geometry and positioning of the filter elements.

Benefits
 •Low Maintenance Costs And Operations
 •Lower Energy Consumption
 •Higher Work Safety Conditions For The Operator
 •Prolonged Life Duration

Technical Data

POLYGONAL SHAPE DUST COLLECTOR
 Horizontal
FILTER ELEMENT
 Pocket
FILTER SURFACE
 54 m2
FILTER MEDIA
 Polyester felt 500 gr/m2
CLEANING SYSTEM
 Reverse air jet (min. 5 - max. 6 bar)
TIMER
 Electronic multivoltage 24 V - 260 V DC/AC 50/60 Hz
SOLENOID VALVE NUMBER
 12
DIFFERENTIAL PRESSURE DEVICE
 Electronic with display and exit 4-20 mA
FAN
 11 kW
FAN MAXIMUM AIR CAPACITY
 6,000 m3
CASING AND DOOR MATERIAL
 STAINLESS STEEL 304
SEAL FRAME MATERIAL
 Carbon steel powder-coated RAL 7001


Applications
 - GROUND INSTALLATION
 -WEIGH HOPPER INSTALLATION
