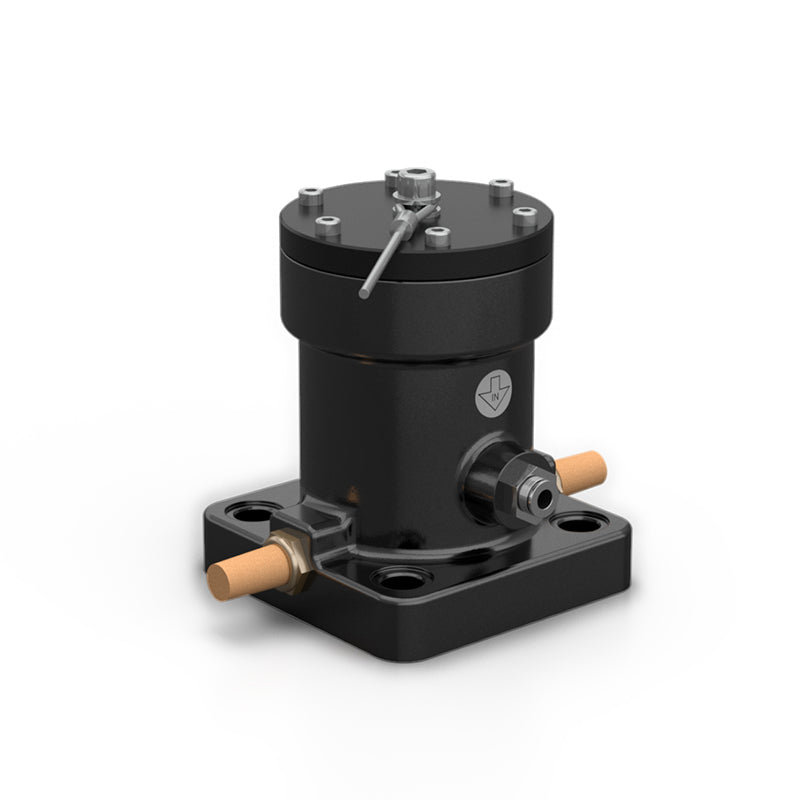

Pneumatic Impact Vibrator for Material Flow | P Series

The P-Series pneumatic impact vibrator is a powerful flow-aid device for silos, hoppers, and bulk material handling equipment. The vibrator uses compressed air to drive an internal piston that repeatedly impacts a mounting plate welded to the equipment wall.

This continuous impact generates strong vibration that breaks bridges, crusts, and compacted material inside silos, restoring normal discharge flow of powders and bulk solids.

Unlike rotary vibrators, linear pneumatic vibrators generate a strong directional impact, making them ideal for breaking material bridges, reducing buildup, and improving discharge in silos, hoppers, chutes, and bins.

They are commonly used in cement, aggregate, mining, and bulk material handling applications where high-impact vibration is required without continuous rotation.

At MixMaster Components, we help customers select the correct vibrator type and size to avoid oversizing, structural stress, and premature wear.

Key Benefits

• Extremely strong vibration for difficult materials
• Prevents bridging and rat-holing in silos and hoppers
• Suitable for sticky or humid powders
• Compact and robust industrial design
• Works with standard compressed air systems

The continuous impact mechanism produces a powerful shockwave that loosens compacted material on silo walls.

Typical Applications

P-Series pneumatic impact vibrators are commonly used in:

• Cement silos

• Concrete batching plants

• Powder transport pipes

• Vibrating chutes and feeders

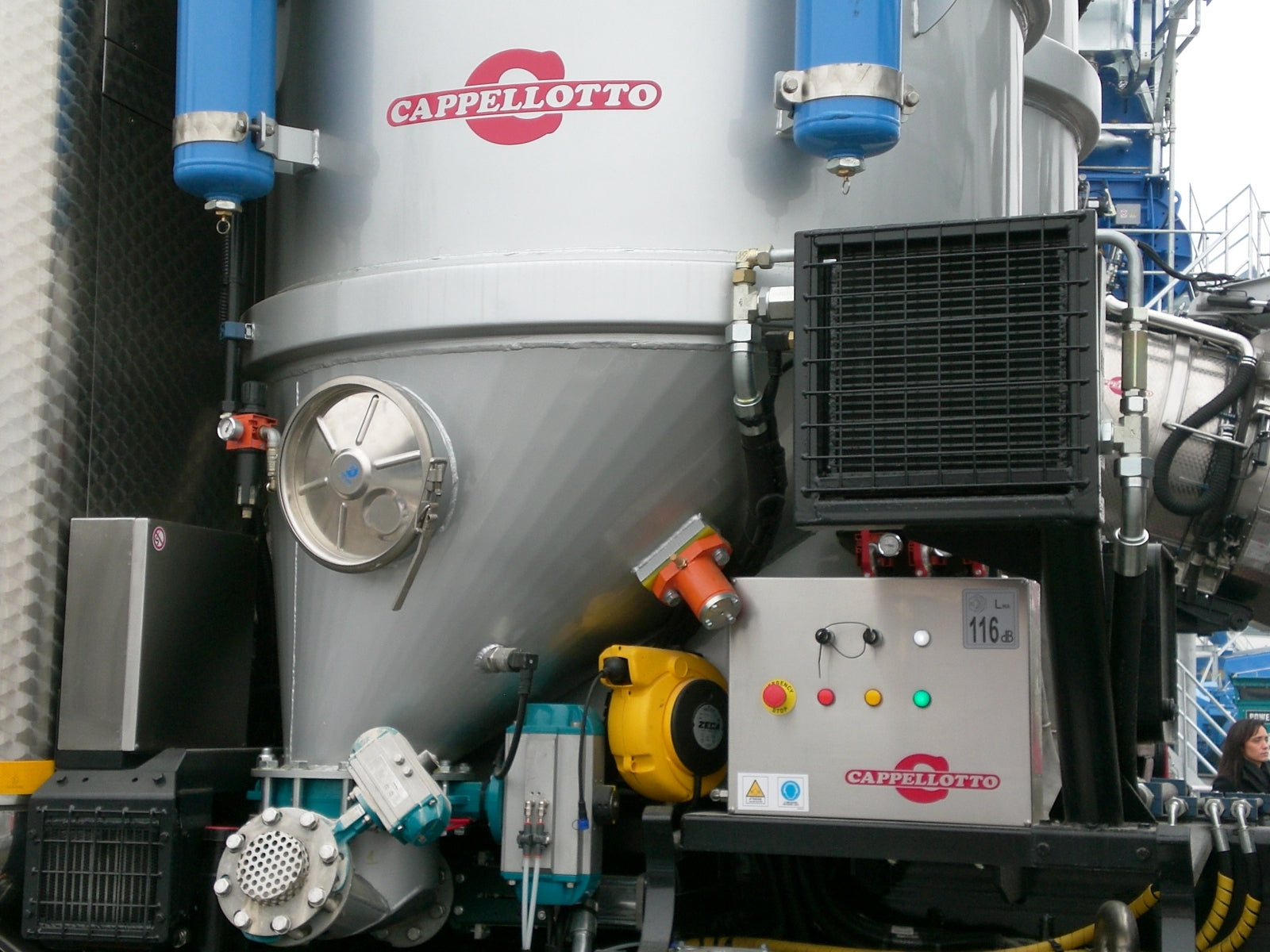

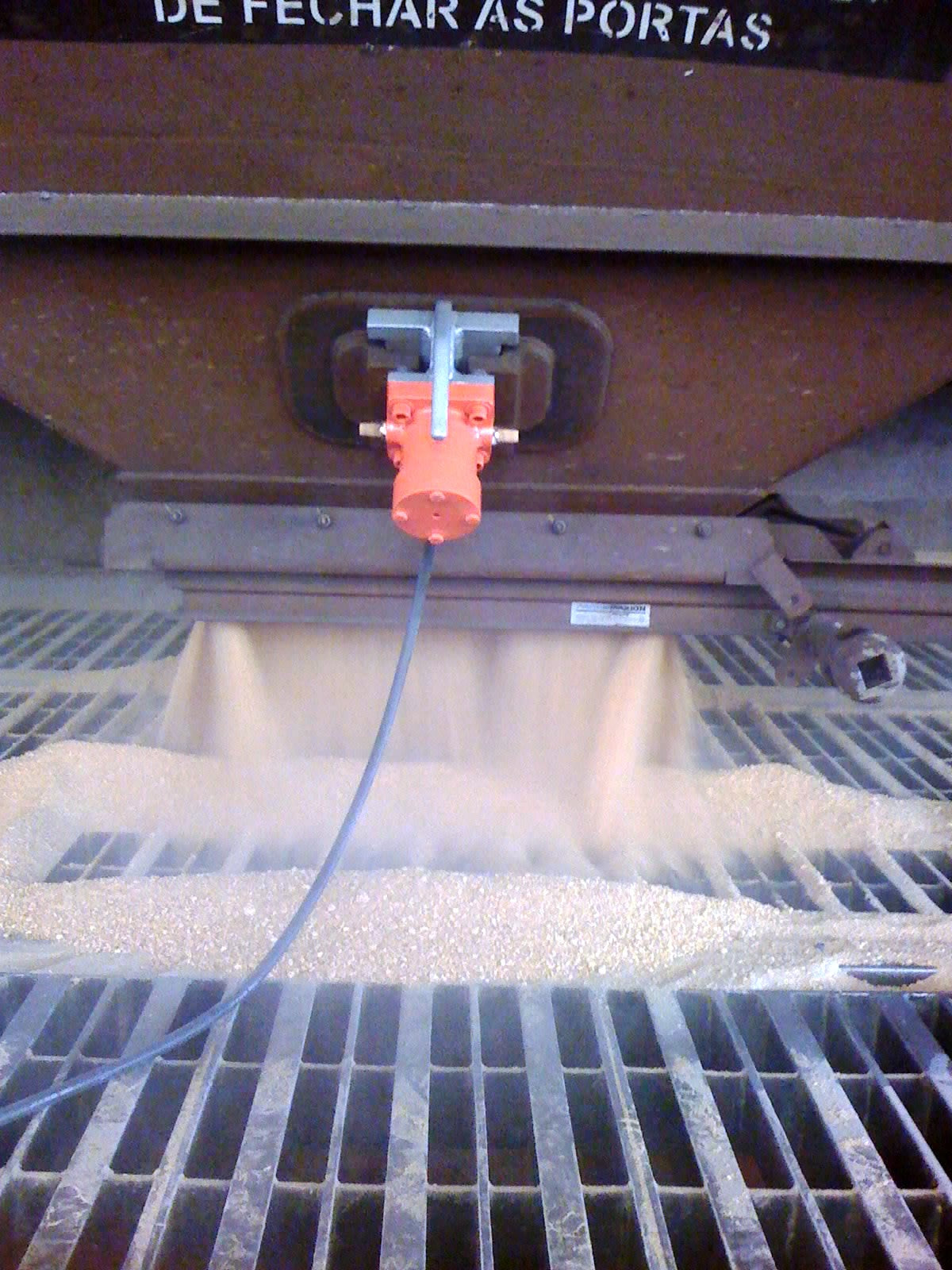

• Dump trucks and rail wagons

These vibrators are particularly effective with materials that tend to adhere to equipment surfaces such as clay, salts, sludge, or electrostatic powders.

How a Pneumatic Impact Vibrator Works

The P-Series vibrator uses compressed air to move a piston inside the vibrator housing. The piston repeatedly strikes a metal base plate welded to the equipment surface.

Each impact generates a shockwave that travels through the silo or hopper wall, loosening compacted material and preventing buildup.

This method is particularly effective for sticky materials that cannot be dislodged with standard vibration systems.

FAQ

What is a pneumatic impact vibrator used for?
A pneumatic impact vibrator is used to break compacted material and improve discharge flow in silos, hoppers, and bulk material handling equipment.

What pressure is required for pneumatic vibrators?
Most pneumatic impact vibrators operate between 2 and 6 bar of compressed air pressure.

What materials can be handled with pneumatic vibrators?
These vibrators are suitable for powders, granules, clay, salts, sludge, cement, and other materials that tend to stick to equipment surfaces.
